Enavigo Cutter

Designer: Tony Gondola

Dužina preko svega
11,90 m
Dužina trupa
9,99 m
Širina trupa (max)
3,50 m
Istisnina
8,60 t
Kobilica
3,5 t
Gaz
1,60 m
Duljina vodene linije
9,02 m
Voda
700 l
Gorivo
300 l
Motor
Yanmar 3JH4E 39 hp
Brzina na motor
7,1 čvorova
Domet
520 n/m

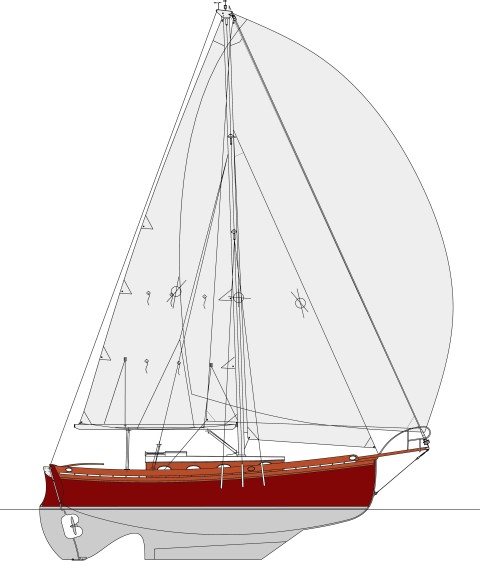

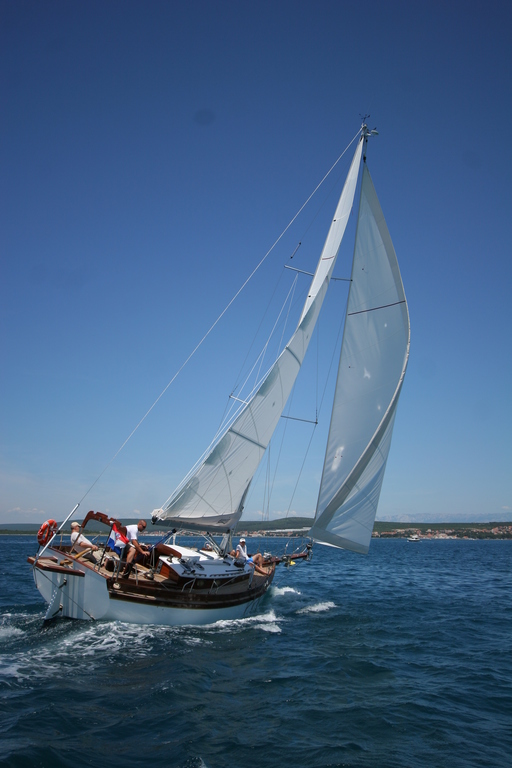

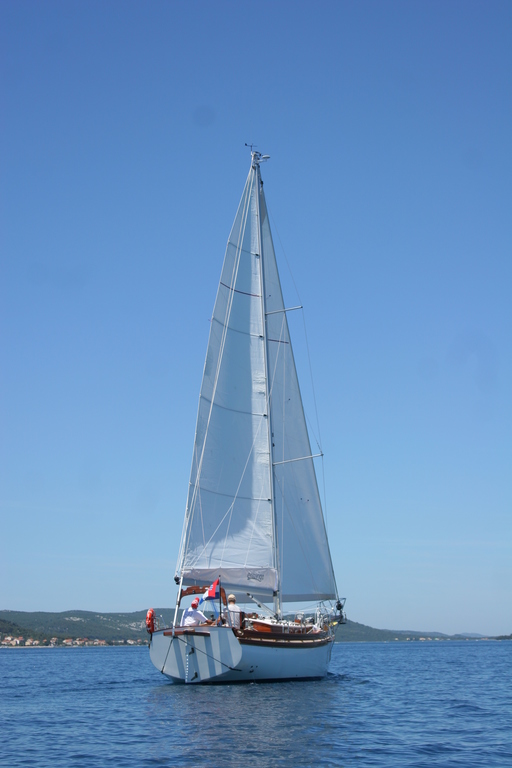

Jedra

Main sail
31.4 m²
Genoa namatajuća
40,8 m²
Jib
13,0 m²
Gennaker
117,6 m²
I
13,25 m
J
5,16 m
P
12,00 m
E
4,83 m

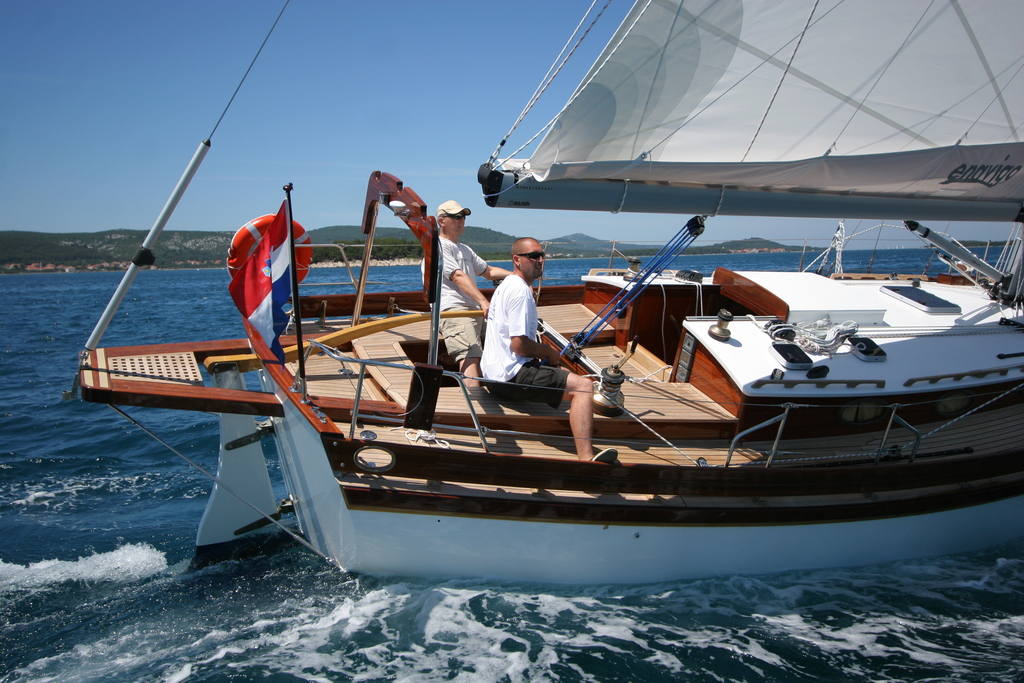

Kombinirajući tradicionalni dizajn sa suvremenom tehnologijom izrade koja garantira izvanrednu čvrstoću i dugi životni vijek broda, dizajniran je Enavigo Cutter.

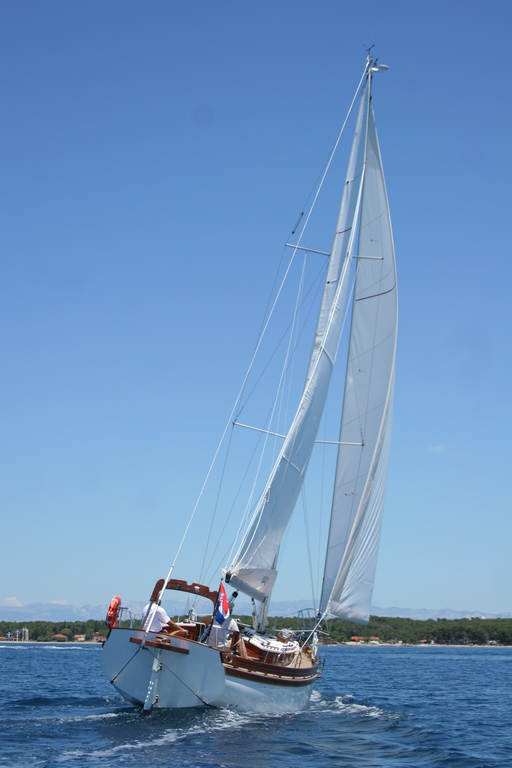

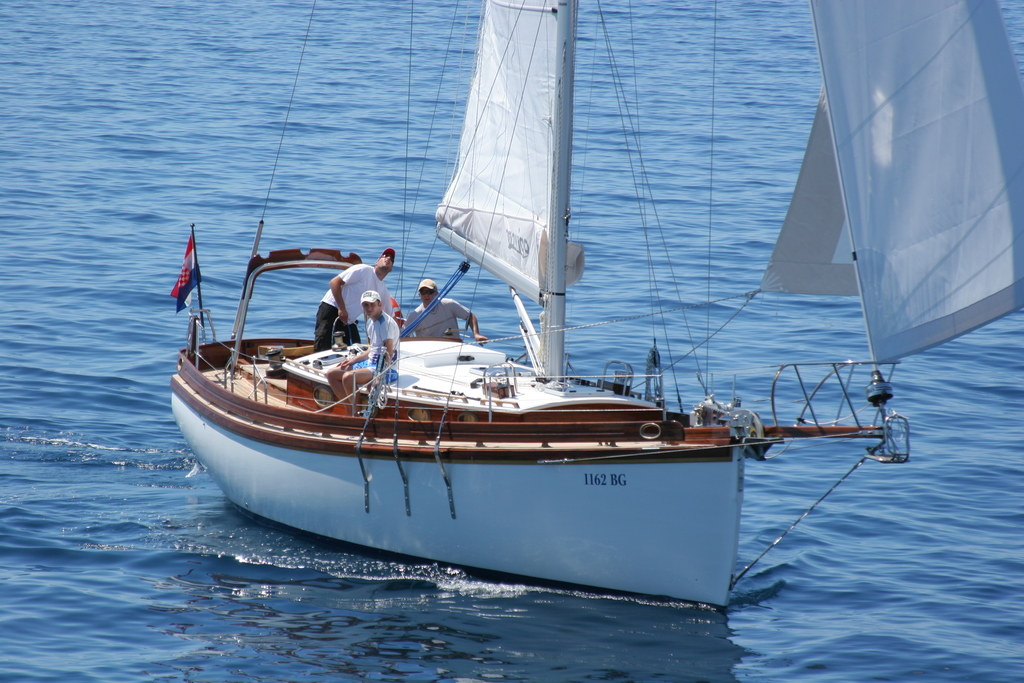

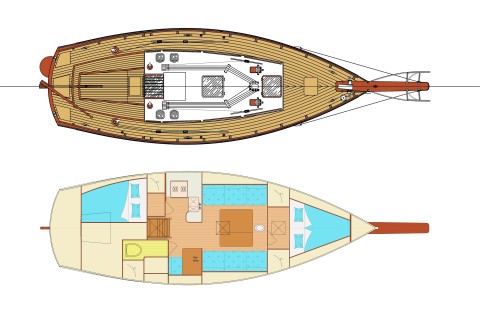

Jedrilje tipa kuter, duga kobilica, pažljivo oblikovan podvodni dio trupa, na tragu suvremenih profila omogućuju udobno i sigurno krstarenje bilo kojim morem. Iako nije namijenjena da bude regatna jedrilica, zahvaljujući dugoj kobilici može jedriti iznenađujuće brzo. Debljina drvene kompozitne oplate trupa iznosi 36 mm. Sve kabine imaju stajaću visinu a krov je sendvič izvedbe. Raspored interijera je klasičan za tu veličinu i namjenu broda, centralni salon s po jednom kabinom u pramcu i u krmi, ukupno 6 ležajeva.

zervoari za vodu i gorivo su smješteni ispod nivoa poda i integrirani su u konstrukciju trupa što mu daje dodatnu čvrstoću i spušta težište. Veličina rezervoara omogućuje dugu plovidbu bez opskrbe. Topla voda, crni tank, električno sidreno vitlo, roler đenove te mnoštvo brodskih instrumenata spadaju u redovnu opremu. Pod palubom su ukupno četiri kaljužne pumpe, dvije električne i dvije ručne. Paluba je u tikovini s kosnicima i palubnom ogradom od mahagonija. Jedrilje je opremljeno sa suvremenim aluminijskim jarbolom i kvalitetnom opremom za rukovanje. Motorni pogon Yanmar 3JH4 snage 29 KW je pouzdan i dovoljno snažan za svaki manevar.

Tehnical Specifications

Hull Construction

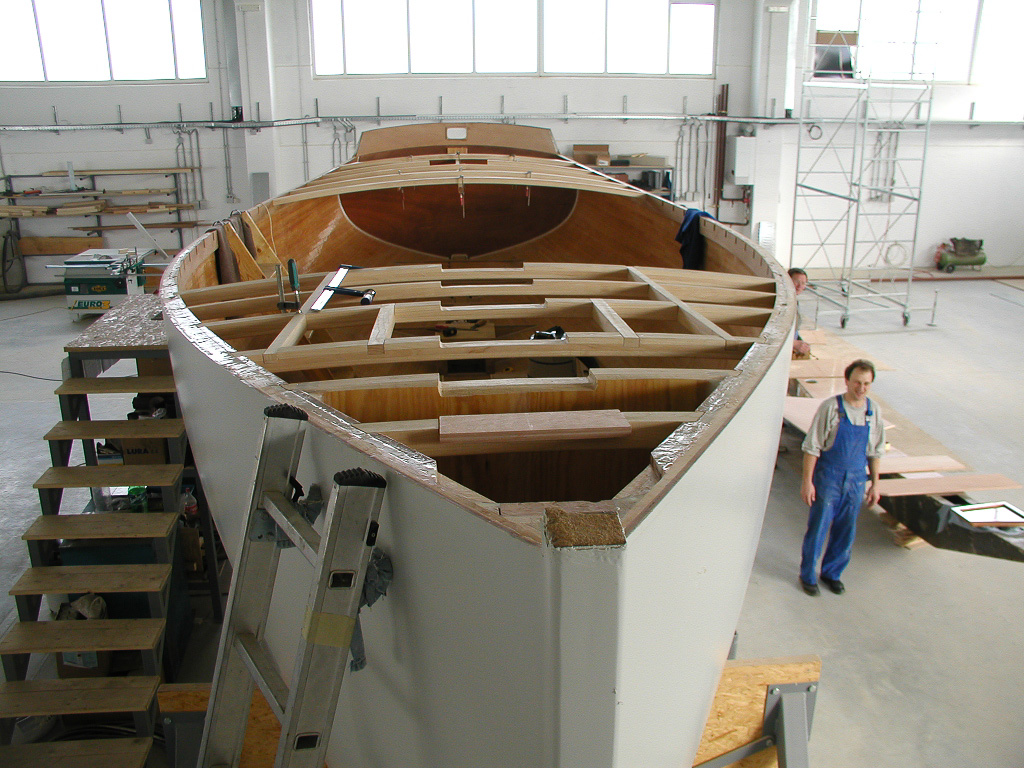

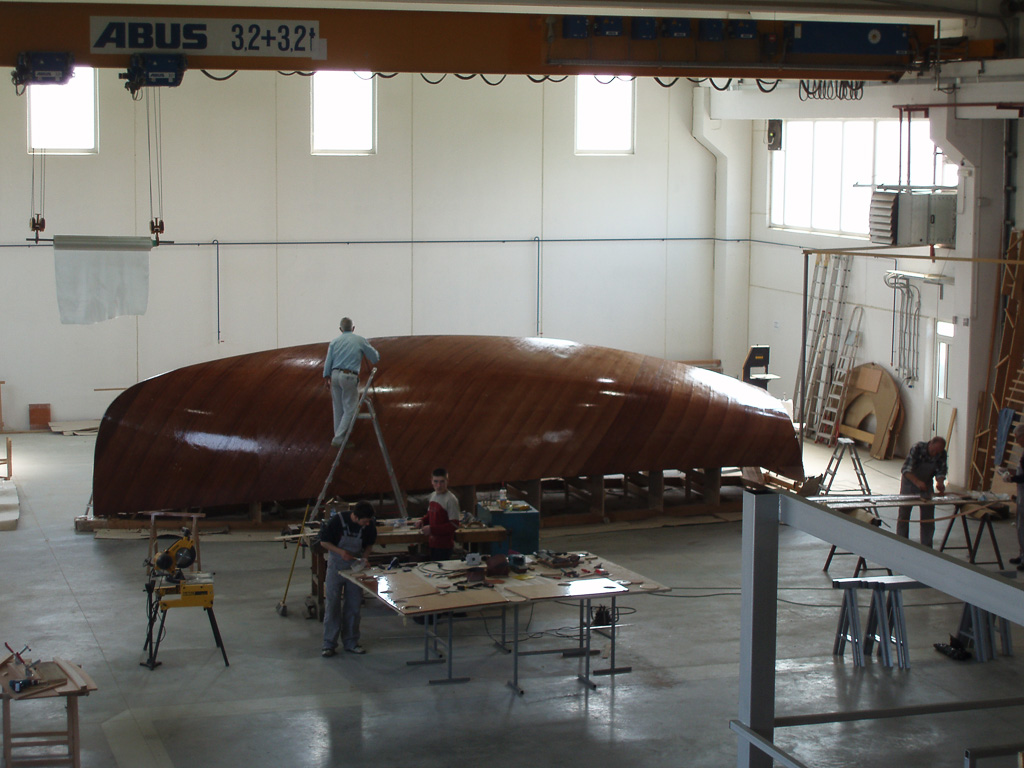

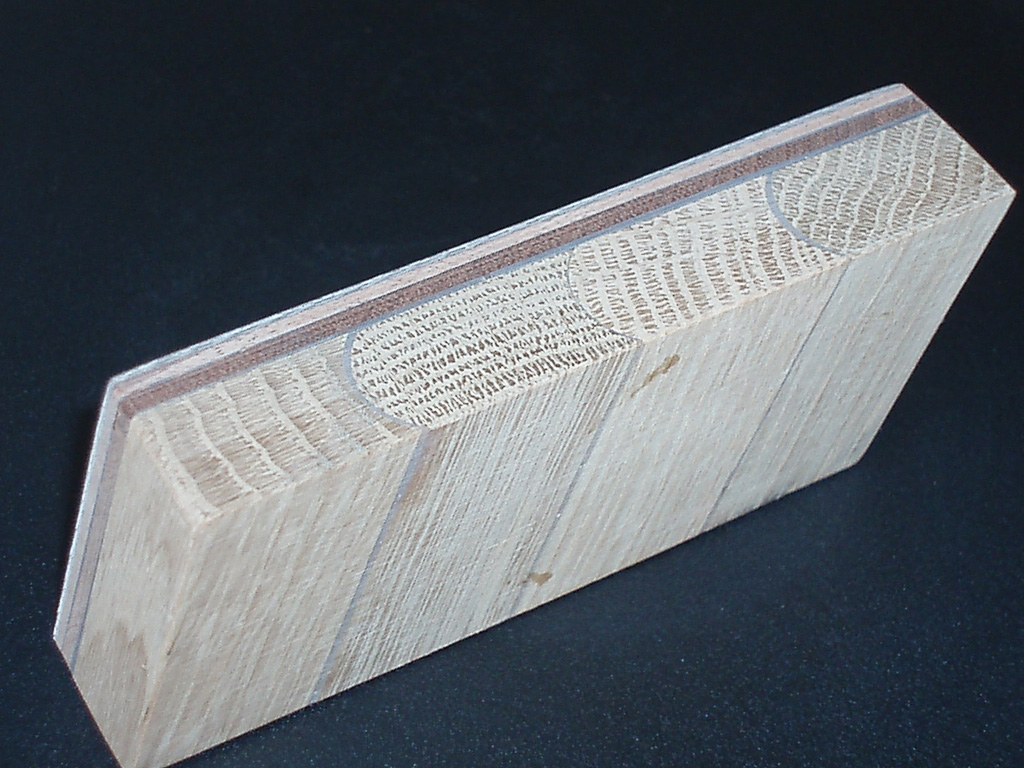

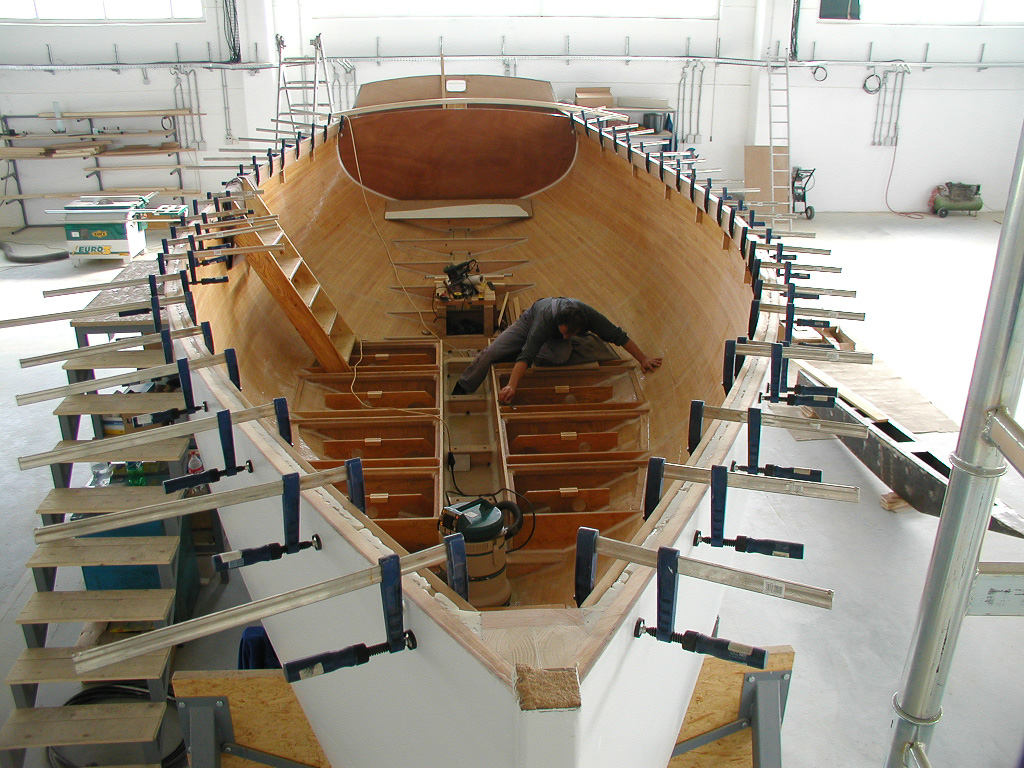

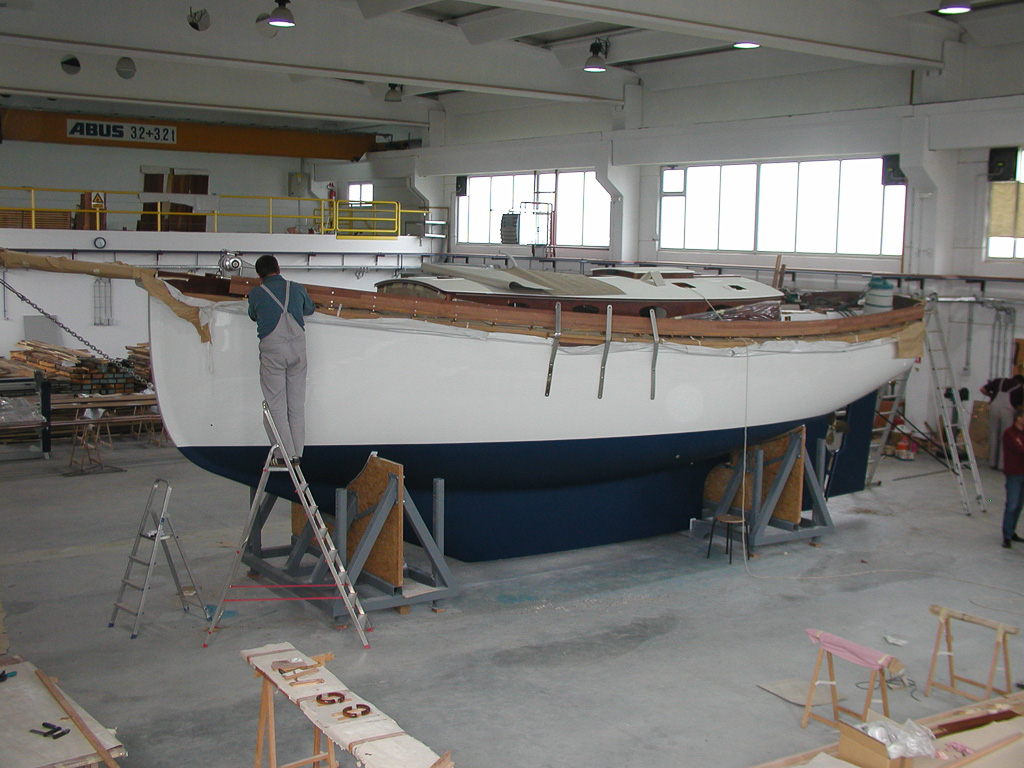

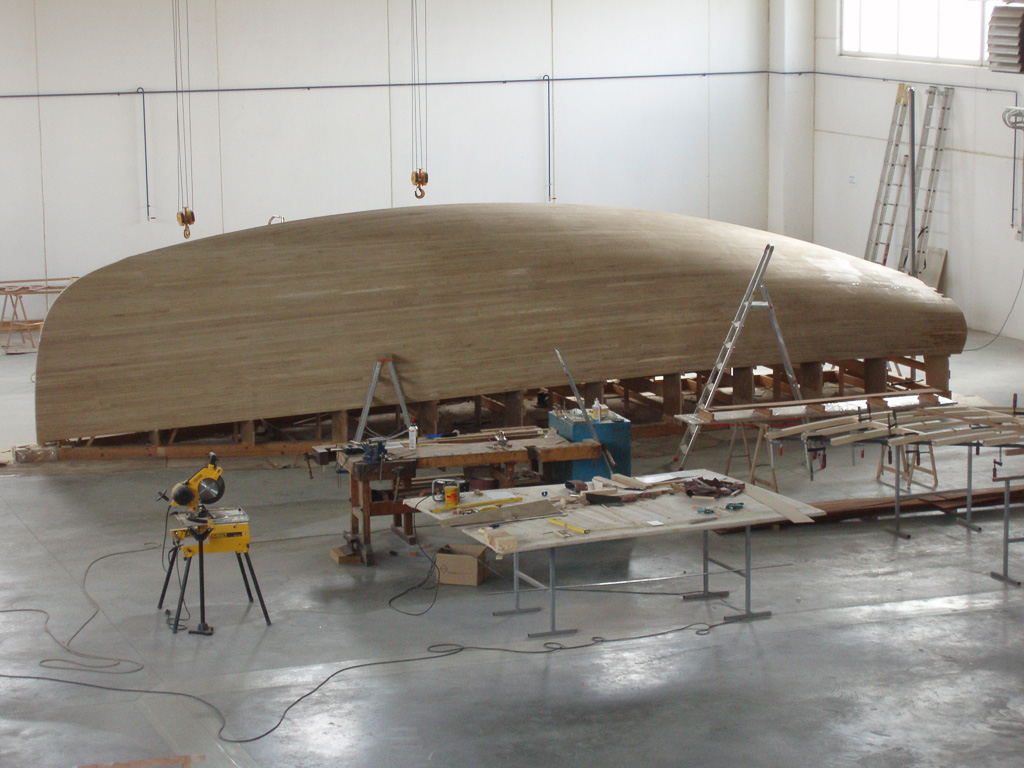

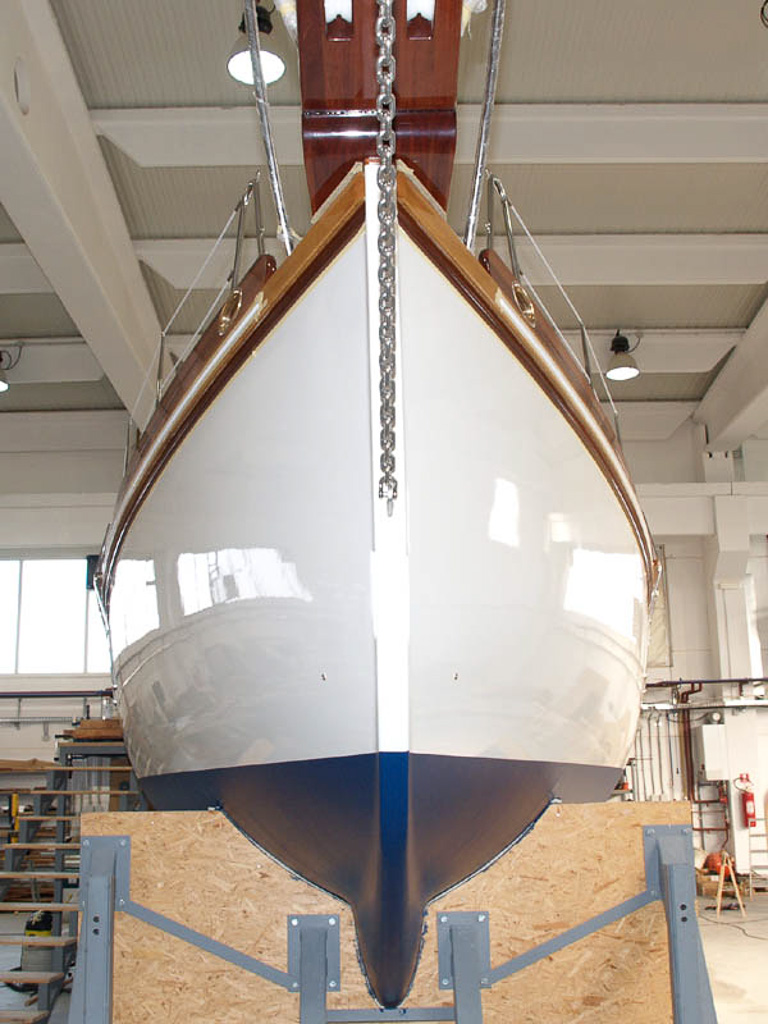

Red cedar planking over male mould, 25mm x 35mm cover, epoxy bonded. Diagonal 2 x 3mm khaya veneer overlay at 45 degrees, epoxy bonded. The hull planking is sheathed with 2 layers of 350gsm glass/epoxy, faired with epoxy fillers and coated with Awlgrip paint system. The inner side, below the water line of the hull is coated with 2 layers 350gsm glass/epoxy. Ballast – stainless steel box with lead inside (3.060 kg) – secured with 16 bolts (M16). Hull warranty 10 years.

Engine

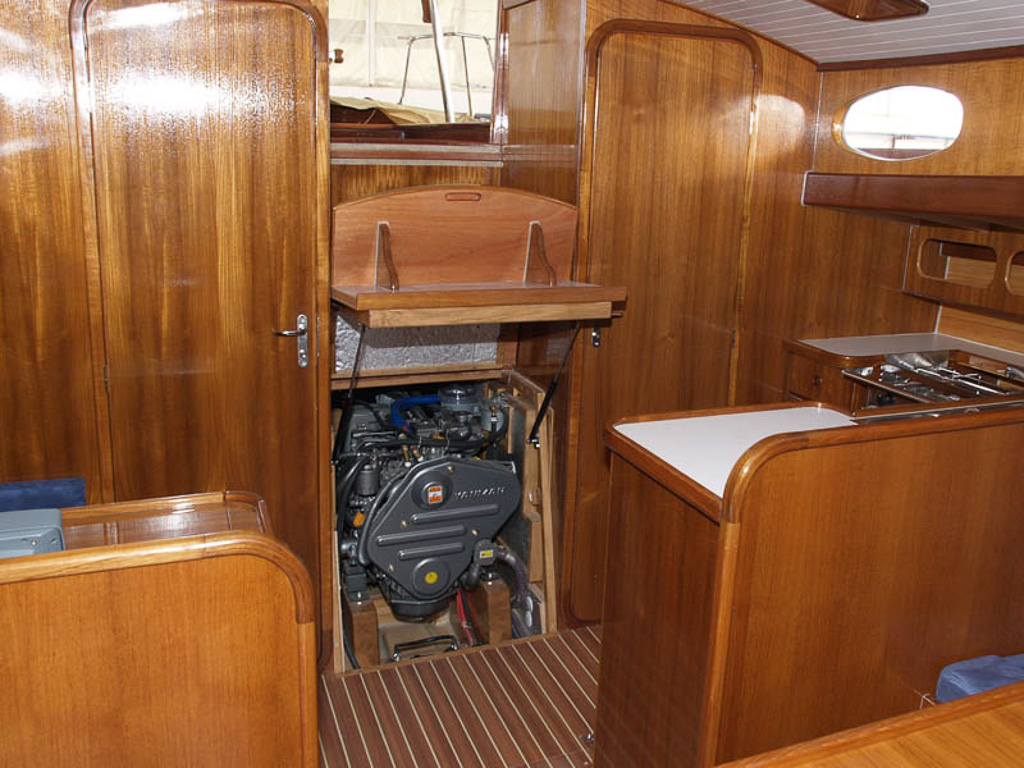

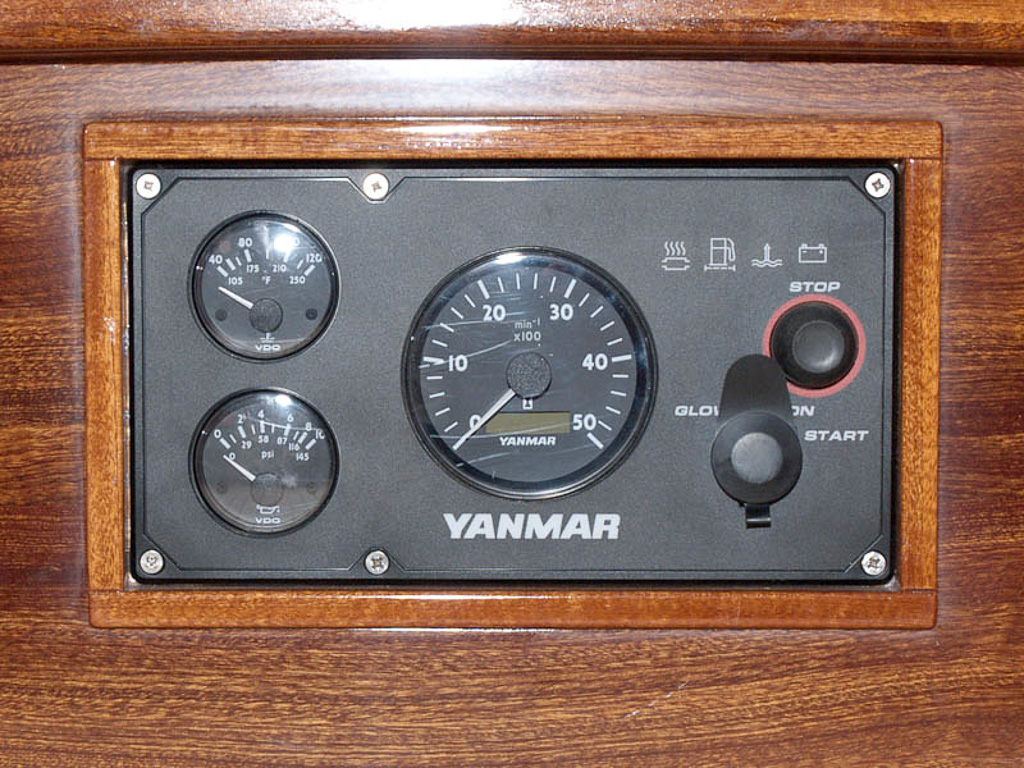

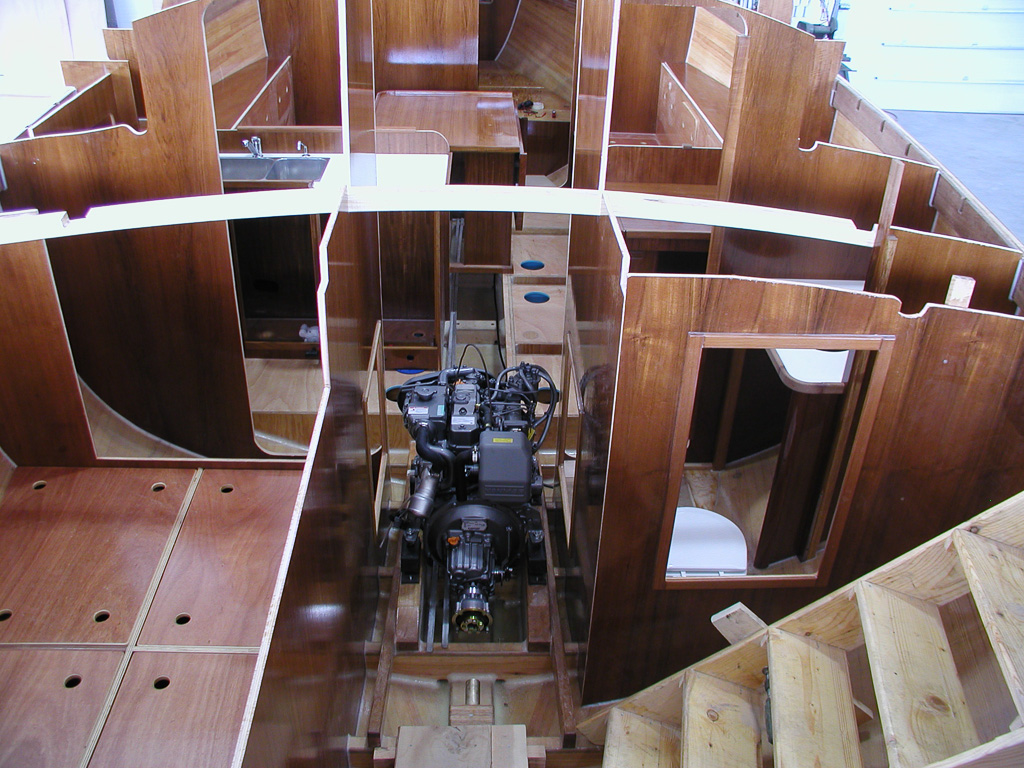

The standard engine is a Yanmar 3JH4E, marine diesel developing 39 hp/3000 rpm with a KM35A gearbox. The acid-proof propeller shaft swings a 21'' bronze propeller, complete with lubrication system. The 300-litre fuel tank is properly vented. A cruising range of approximately 520nm is provided. The engine room is properly vented and has its own lighting. Access to the engine at all sides. Aquadrive (anti-vibration system) installed.

Plumbing

Fresh water capacity of 700 liters is located below the cabin sole and integrated into the structure of the hull with an inspection/clean-out port and deck filler. A pressure water system supplies the galley, heads and cockpit. All tubing is in PVC and rubber. There is a double stainless-steel sink in the galley, and basin and hand-shower in the heads. Galley and heads are both supplied with hot water. Heads: marine pump. A 80-litre septic tank is standard equipment. Two electric bilge pump – one automatic bilge pump and one automatic/manual bilge pump rest below the cabin sole. There is one manual bilge pump in the cockpit.

Electrical System

12V circuit 3 acid batteries: 2 x 100Ah for users and 1 x 100Ah for main engine start 2 separate main switches and blocking diode The charging system employs a 12V/80A alternator. Automatic fuses for all appliances. LED lights, neon lights and halogen cabin lights 12V plug on the instrument panel. Electrical system is ready for solar panels and generator upgrade.

Spars and Rigging

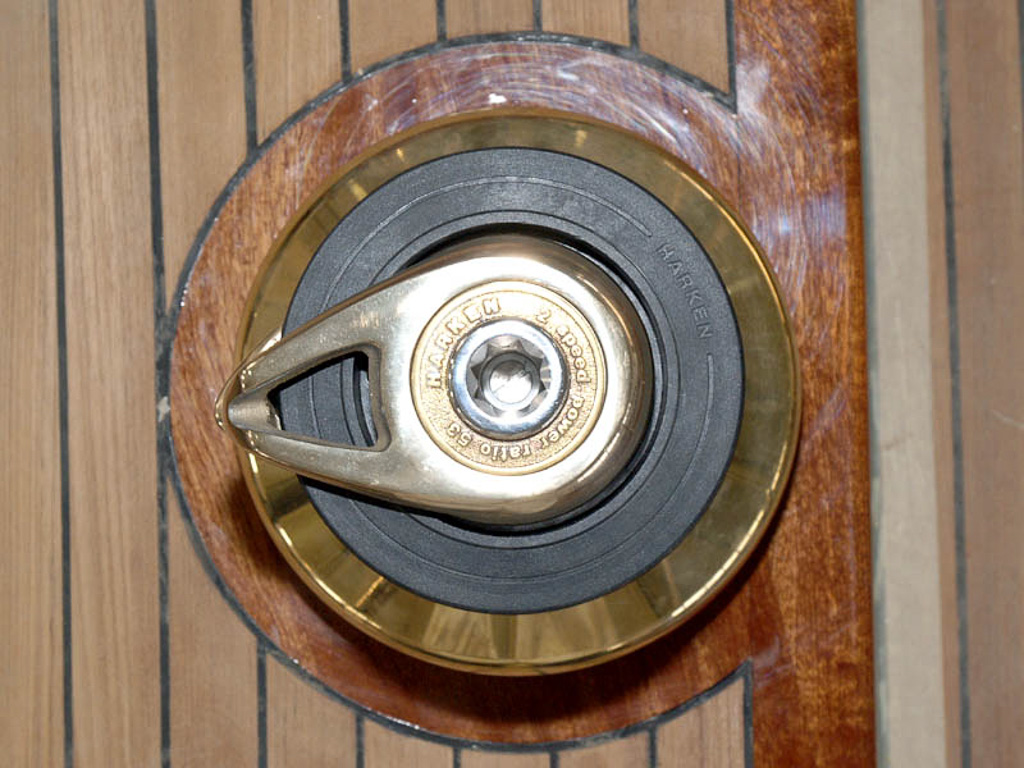

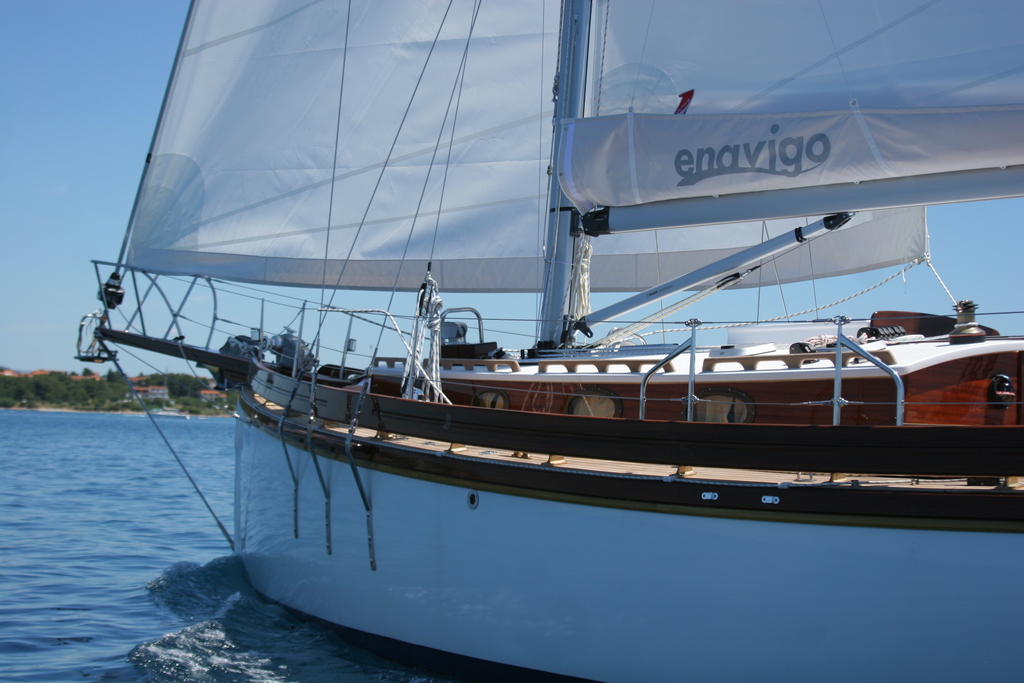

Aluminium Selden mast, with internal halyards. Boom equipped with gas vang. steaming light, anchor light and deck light on the mast. Halyard winches: 2 x Andersen 40ST, Genoa winches: 2 x Andersen 52ST. Chainplates are of stainless steel. Harken tracks, mainsheet, blocks and cars. Spinlock clutches, furlex 300S, pelican hook (for cutter stay) – terminal.

Height above waterline: 15,1 m

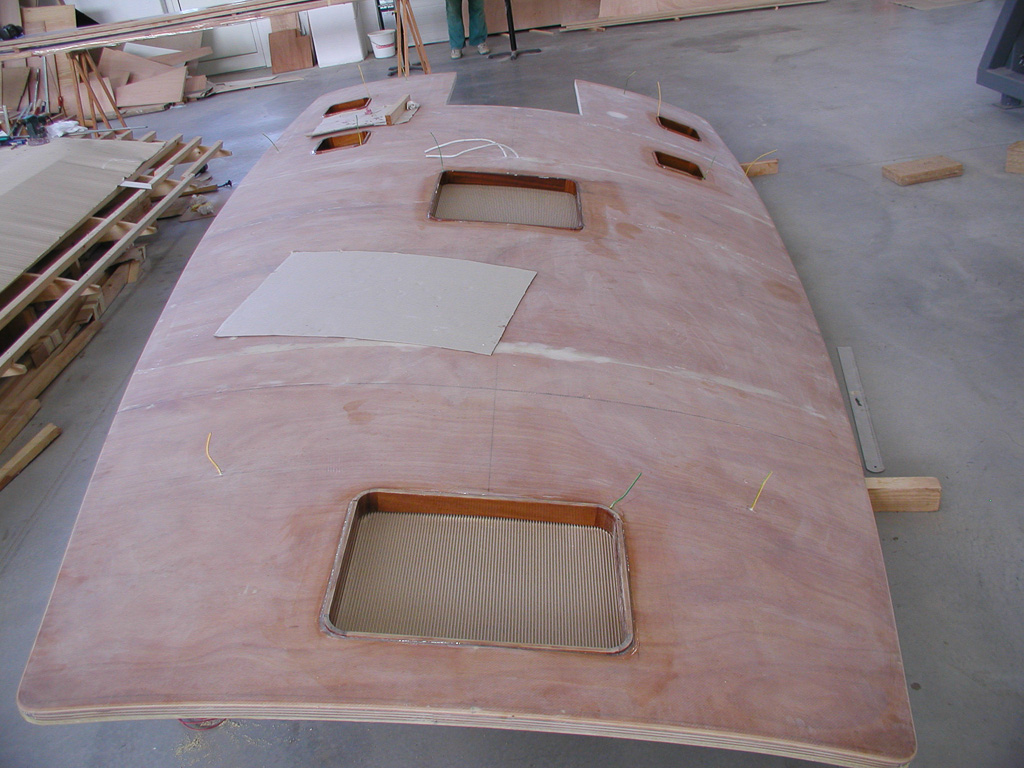

Deck

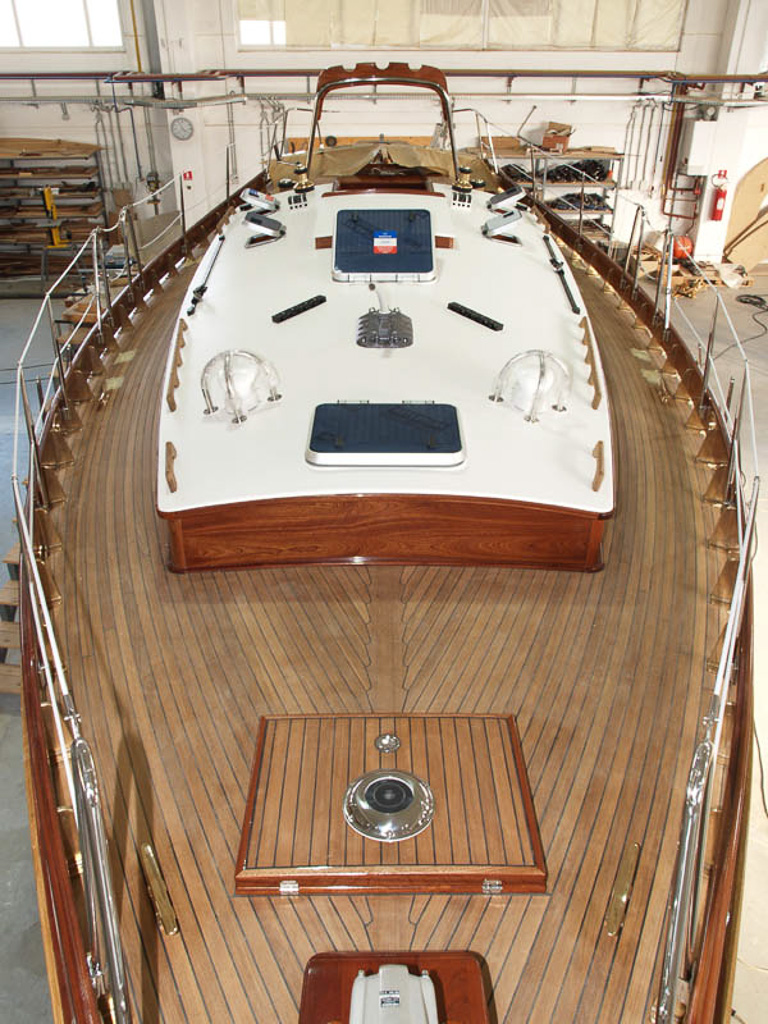

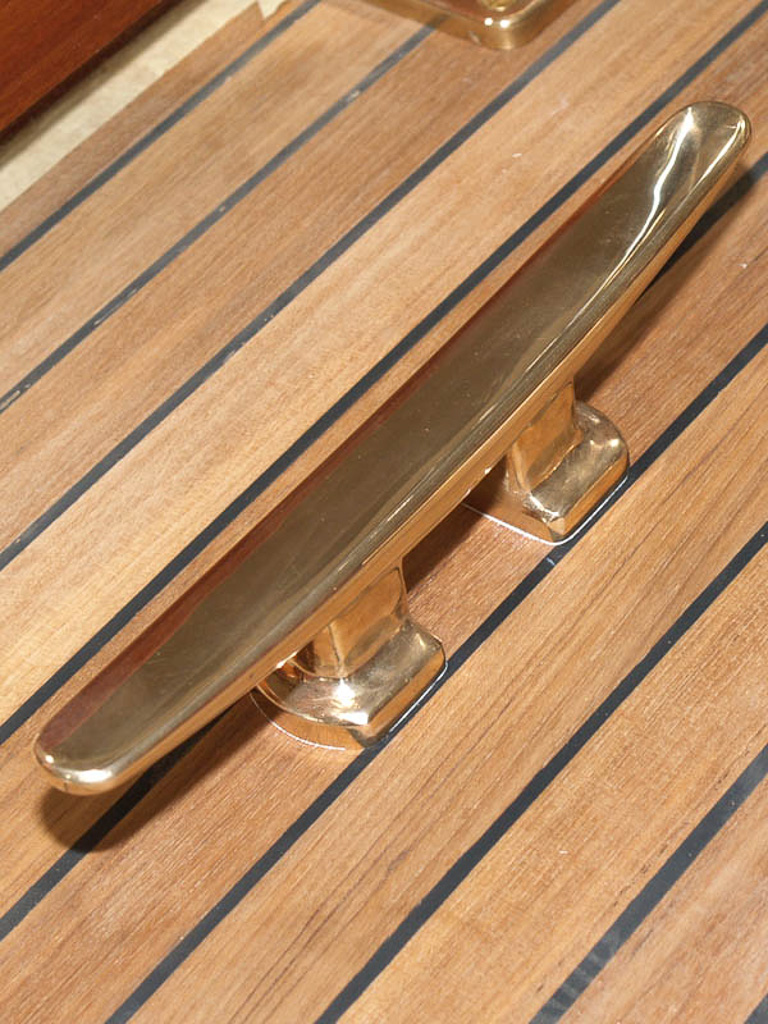

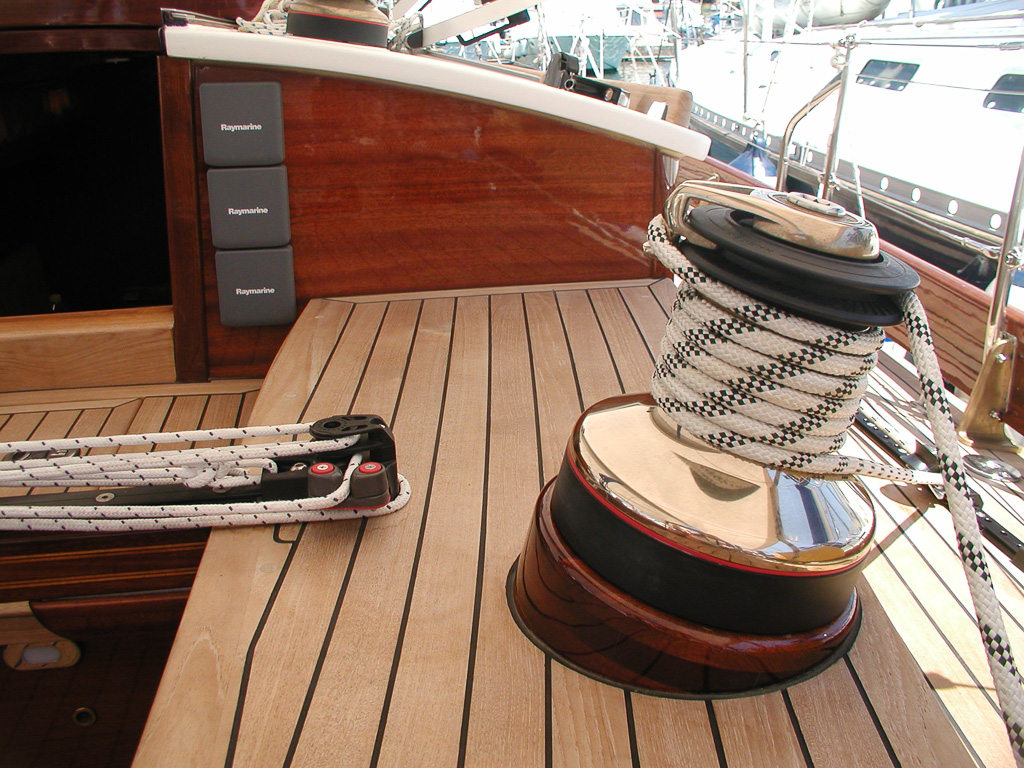

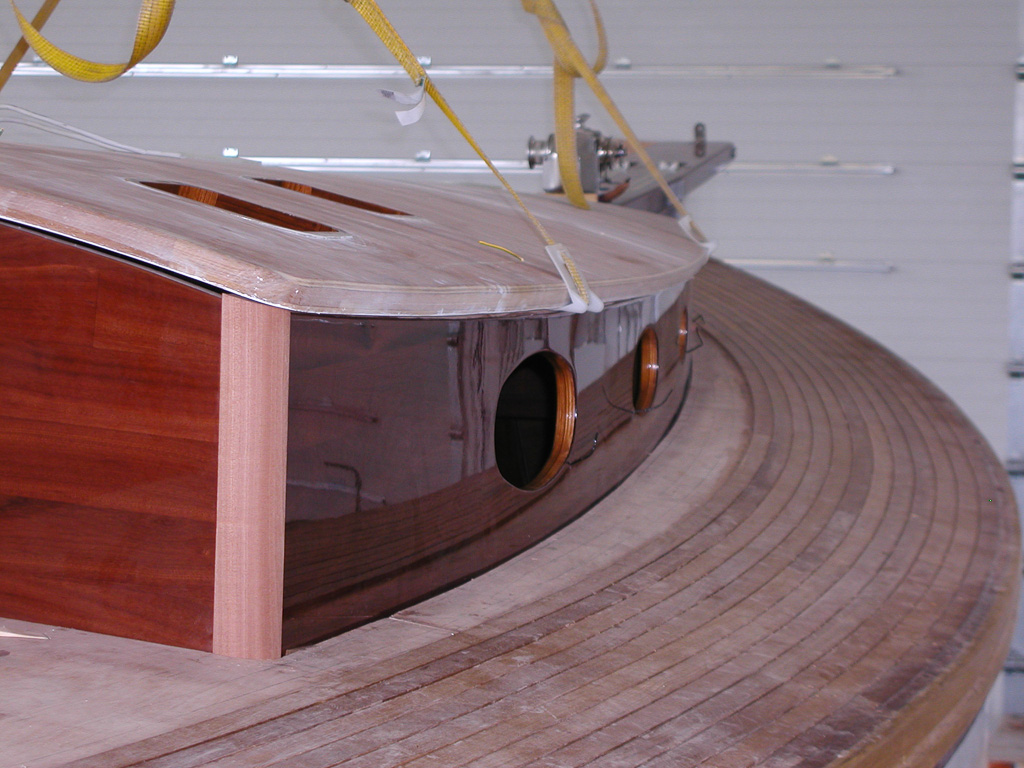

  • Teak deck and cockpit, cabin and cockpit sides in natur mahogany, 6 mooring cleats (250mm)
  • Electric windlass 1,200W (Lofrans Tiger)
  • Teak or bright mahogany bulwark
  • Cockpit hot-water shower
  • Tridata (temp/speed/depth)
  • Wind display and wind indicator

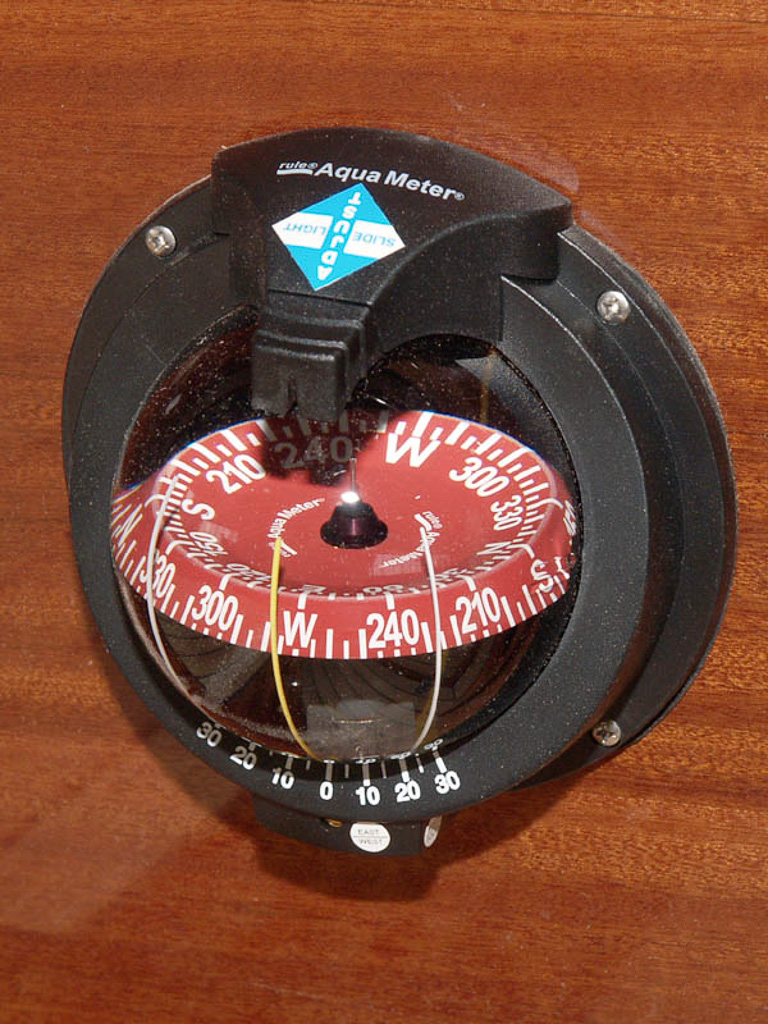

  • Compass in cockpit
  • Bowsprit constructed from laminated solid mahogany
  • All mahogany elements are coated with one layer of 150gsm glass/epoxy (transparent) and five layers of 2k PU varnish.

Interior

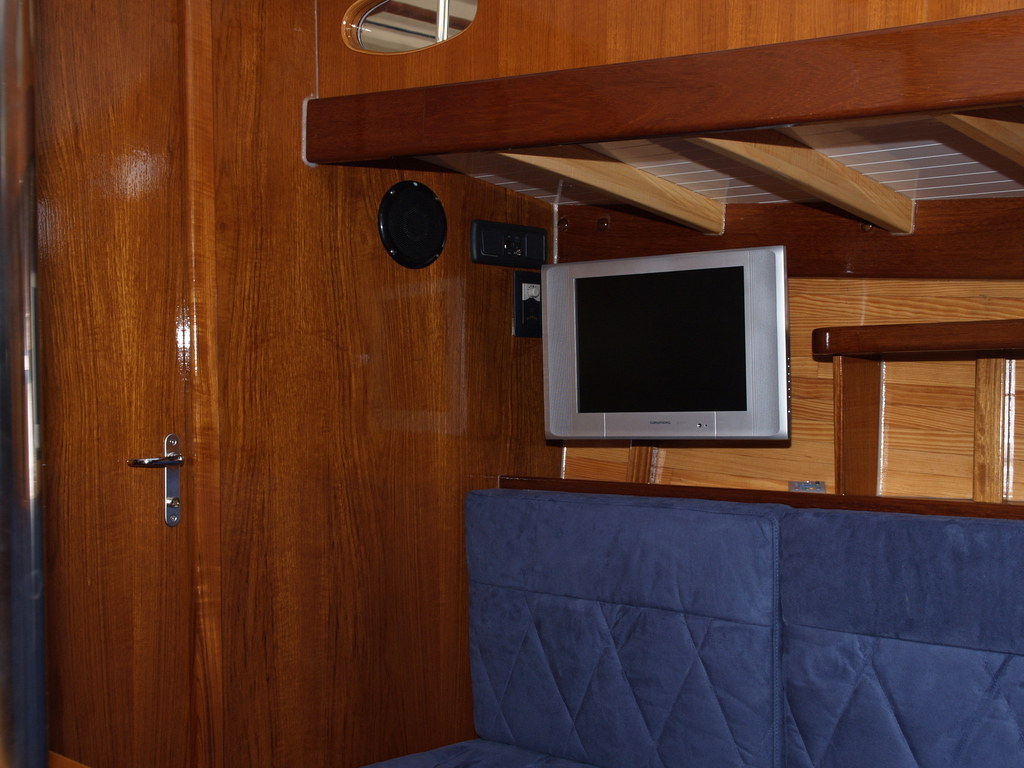

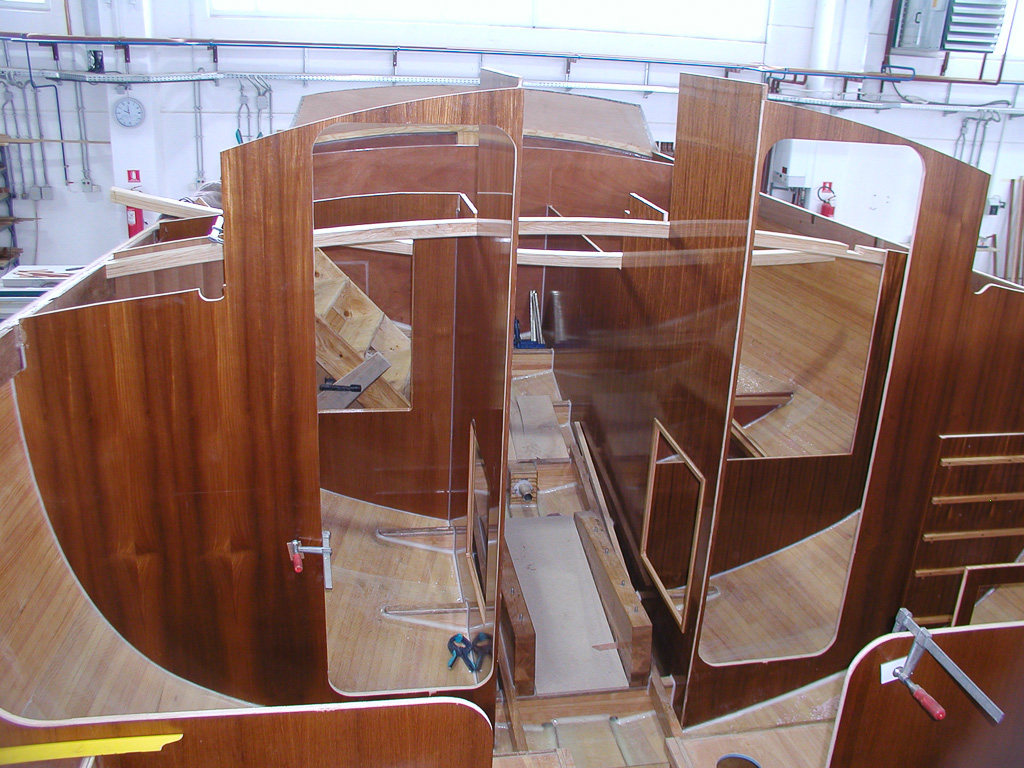

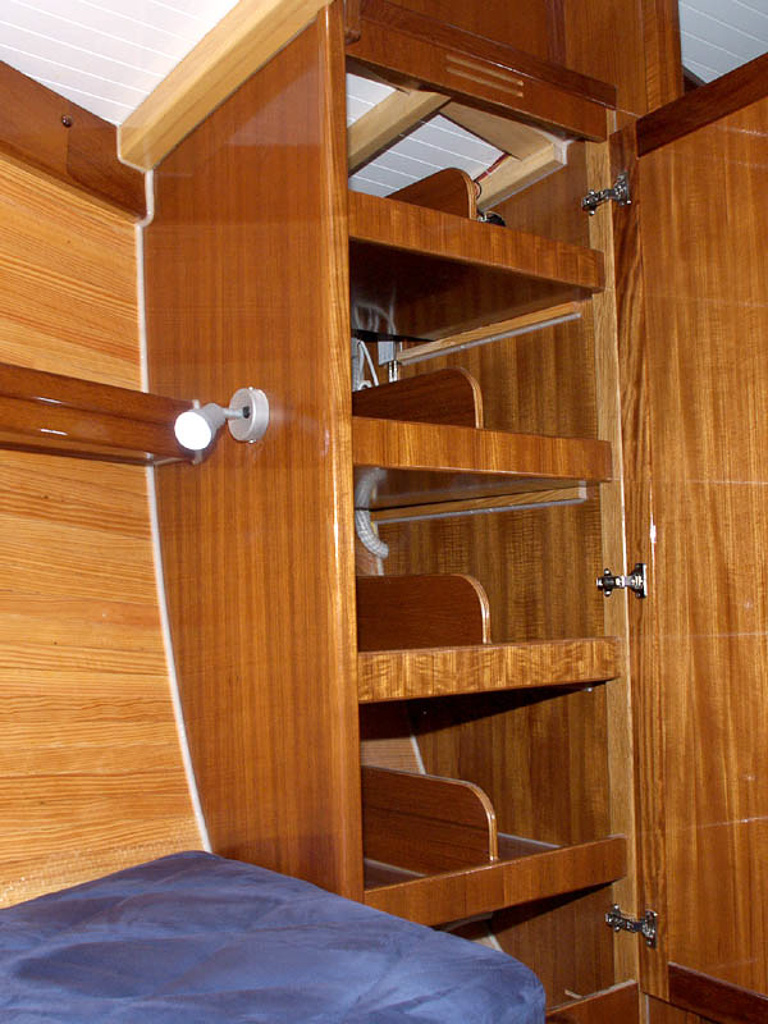

All furniture is constructed of 10mm or 15mm marine plywood (mahogany khaya), bonded and filleted to the hull.

Forward cabin

  • Headroom 196cm
  • 1 double berth: length 201cm
  • 2 large lockers
  • 2 large lateral shelves
  • Storages under berths with top access
  • 2 reading halogen lights with switch
  • 4 overhead LED lights with switch
  • 1 large hatch

Aft cabin

  • Headroom 189cm
  • 1 double berth: length 200cm
  • 1 large hanging locker
  • 3 overhead LED lights with switch
  • 2 reading halogen lights with switch
  • Access to engine room

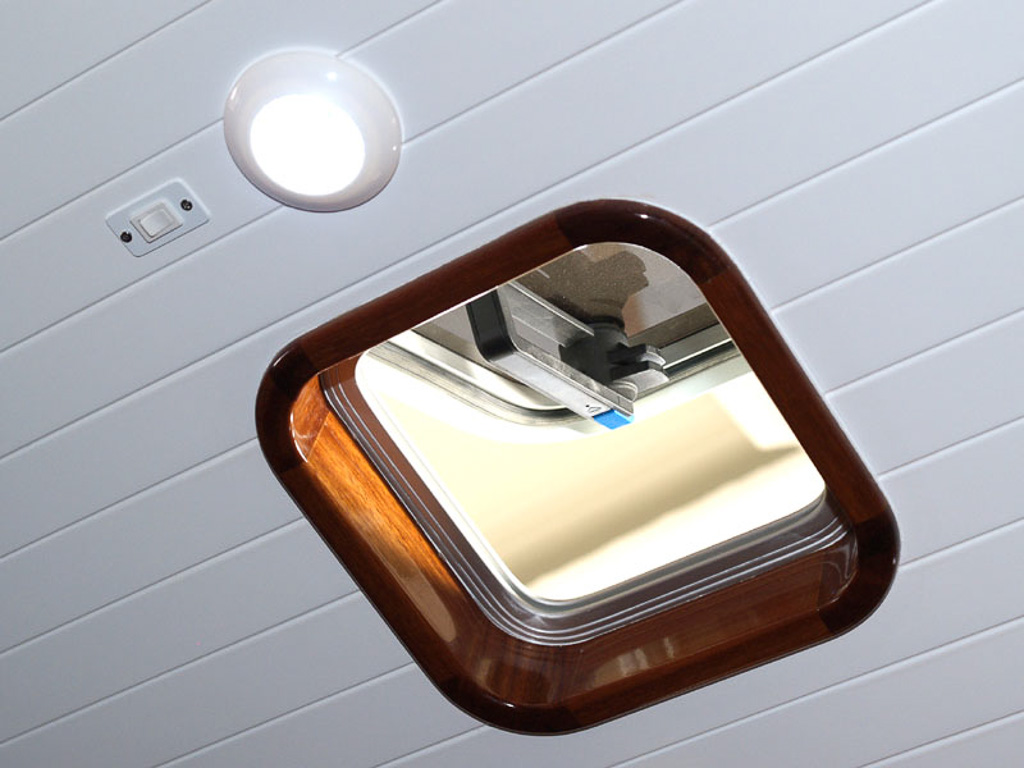

  • 1 opening deck port light

Bathroom

  • Headroom 189cm
  • Marine toilet (80L septic tank)
  • Under-sink stowage locker
  • Electric bilge pump for shower
  • 1 diode and 1 neon overhead lights
  • 1 opening deck-port light
  • Access to engine room
  • 1 mirror

Saloon

  • Headroom 189cm
  • 2 large settees with backrests; stowage behind and underneath
  • Water tanks under cabin sole (700L)
  • Foldable saloon table with a bar compartment: 113 x 95cm
  • 4 fixed deck-port lights on each side, with curtains
  • 1 large deck hatch in the middle of saloon
  • Lockers and shelves above backrests along the hull on both sides

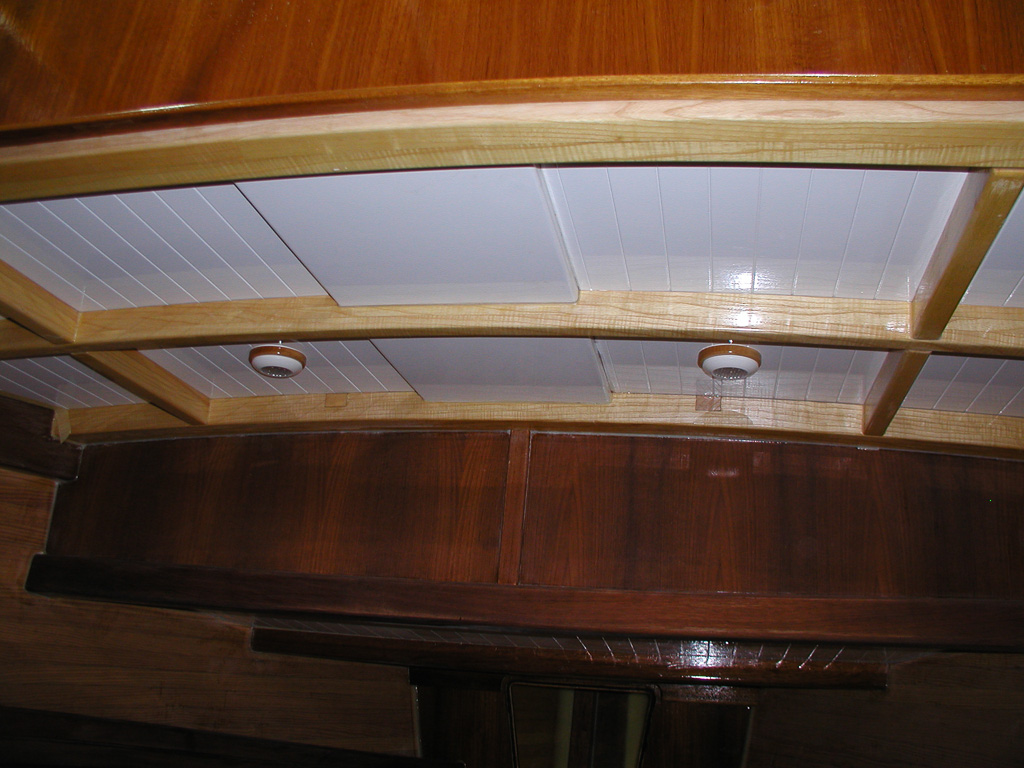

  • 6 overhead LED lights with switch
  • 2 overhead neon lights – above the salon table

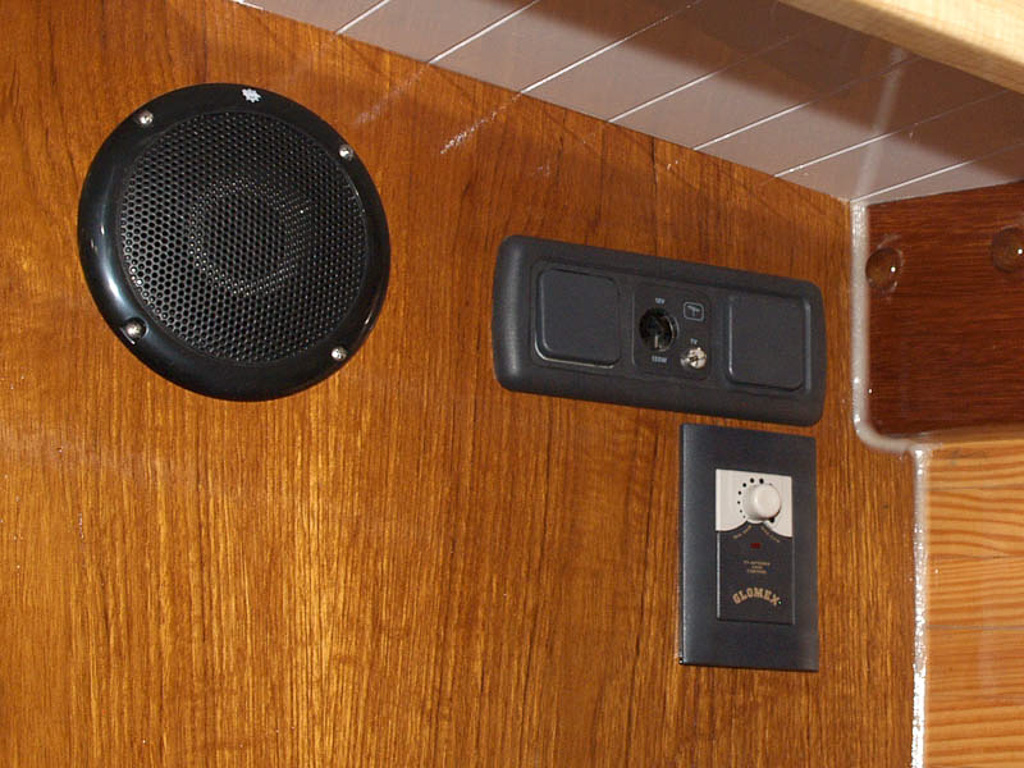

  • 220V, 12V and TV sockets
  • 2 dorade vents

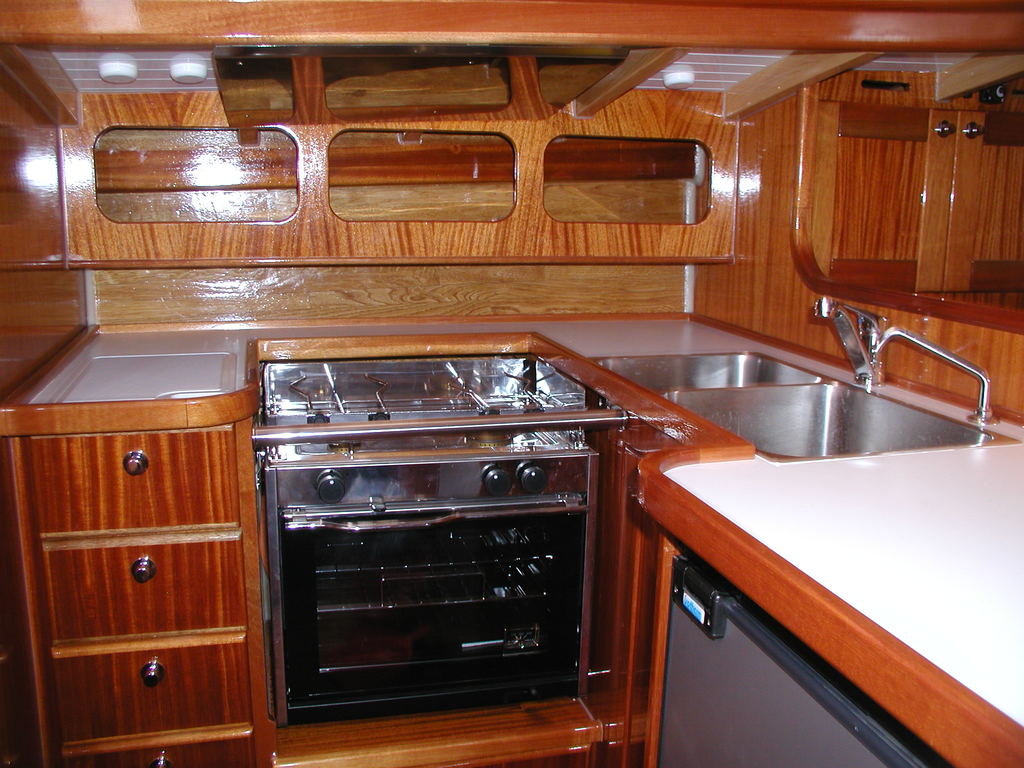

Galley

  • Headroom 189cm
  • Ring cooker and oven with safety rail
  • Double sink
  • Tap with pressurised hot and cold water system
  • Refrigerator (100 litres)
  • Seawater footpump
  • Lockers and cupboards for appliances, dishes above and under the worktop
  • 1 opening deck port light
  • 1 LED overhead with switch
  • 1 neon light overhead with switch

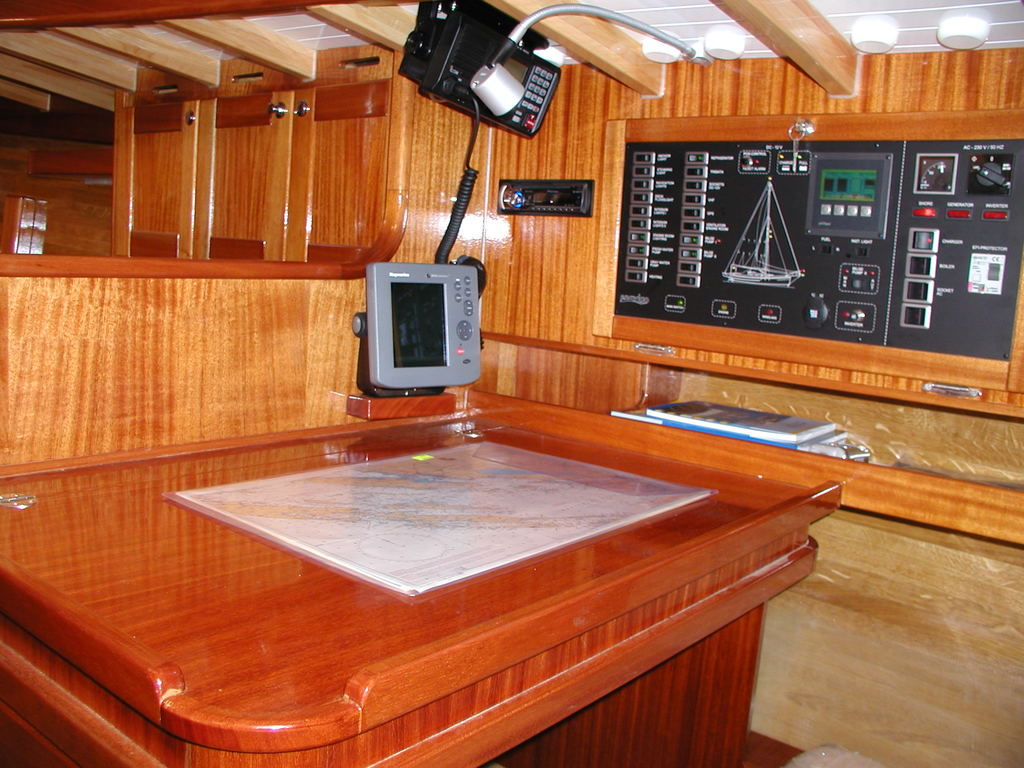

Navigation station

  • Headroom 189cm
  • Chart table 116 x 63cm
  • Adjustable reading light
  • Panel for navigation instruments with voltmeter for batteries, fresh water, fuel level indicator and waste water indicator
  • 220V socket
  • 1 opening deck port light

Additional Equipment

  • GPS Chart Plotter/Fishfinder Raymarine A57D
  • GPS Chart Plotter Raymarine A70
  • VHF IC-M505 with antenna and cabling
  • Eberspacher Airtronic Heating system 3.5 kW
  • Marine generating set, 2.5 KW
  • Autopilot Raymarine S1 Plus Grand Prix
  • Solar panel 2x40W
  • Blue, red or green hull
  • Anchor package: "Spade" anchor 20kg + calibrated chain 50m
  • Anchor package: "Spade" anchor 20kg inox + calibrated chain 50m inox
  • Inverter 220V 500W
  • LCD TV 15" + mounting accessory
  • TV antenna
  • Bow thruster 75kgf
  • Lazy Jack + Lazy Bag
  • Sun-awning (simple)
  • Winter cover
  • Gennaker 120 m²
  • Sprayhood
  • Antifouling
  • Distress Signals: 4 marine aerial hand-held flares, 4 parachute flares and 3 smoke marker
  • Remote control for Electric windlass
  • Fenders (8pcs)
  • Life raft (rigid bag) for 6 persons
  • Shore power cable 25m
  • Mooring ropes O18, 2x12m + 2x20m
  • Wooden swiming ladder
  • Boarding ladder - bow
  • Foldable gangway
